SAE-R9 鋼絲纏繞液壓膠管

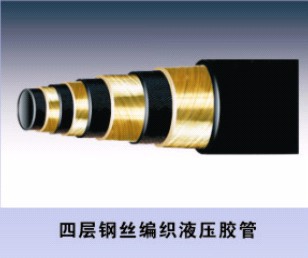

結構-膠管由內膠層、補強布、四層鋼絲纏繞層和外膠層組成。
應用-適于輸送液壓流體如醇、液壓油、燃油、潤滑油、乳化液、烴等等。
工作溫度 -40℃-+120℃
參考標準 SAE100 R9R
| 名義直徑 | 內徑 | 鋼絲層直徑 | 外徑 | 工作壓力 | 試驗壓力 | 爆破壓力 | 至小彎曲半徑 | 參考重量WeightKg/m | ||||
| mm | inch | min | max | min | max | min | max | max | min | |||
| 6.4 | 1/4 | 6.2 | 7.0 | 14.2 | 15.2 | 17.2 | 18.4 | 50.0 | 100.0 | 200.0 | 120 | 0.64 |
| 9.5 | 3/8 | 9.3 | 10.1 | 16.9 | 18.0 | 20.6 | 22.2 | 31.5 | 63.0 | 126.0 | 130 | 0.75 |
| 12.7 | 1/2 | 12.3 | 13.5 | 20.3 | 21.2 | 23.8 | 25.4 | 28.0 | 56.0 | 112.0 | 180 | 0.89 |
| 19.0 | 3/4 | 18.6 | 19.8 | 27.4 | 28.8 | 31.2 | 32.8 | 21.0 | 42.0 | 84.0 | 280 | 1.50 |
| 25.4 | 1 | 25.0 | 26.4 | 34.8 | 35.8 | 38.5 | 40.9 | 21.0 | 42.0 | 84.0 | 355 | 2.00 |
| 31.8 | 1.1/4 | 31.4 | 33.4 | 42.4 | 44.0 | 46.3 | 48.7 | 17.5 | 35.0 | 70.0 | 460 | 2.80 |
| 38.1 | 1.1/2 | 37.7 | 39.7 | 48.7 | 50.3 | 52.3 | 54.7 | 14.0 | 28.0 | 56.0 | 560 | 3.40 |
| 50.8 | 2 | 50.4 | 52.4 | 62.2 | 63.8 | 65.8 | 68.2 | 14.0 | 28.0 | 56.0 | 710 | 4.25 |
